Sintered (Non – Metallic) Filter Cartridges
SSBS SPRINT SSBS has built a enjoy reputation of supplying Quality based fluid filtration and seperation products. SSBS has wide experience of delivering the products as per requirements of Chemicals, Pharmaceutical, Petro-Chemicals, Refineries Fertilizers, Agro-chemicals, Bulk Drugs, Power Generation, Steel, Paper and Pulp, Chlor- AlkalisCaustic, Viscose Fiber Industries and many more
Brief About the Product:
Sprint Brand Sintering is a process for making articles from its base material in powder .They are made by mixing elemental or alloy powders and compacting the mixture in a die, the resultant shapes are then sintered or heated in a controlled atmosphere furnace to bond the particles. Sintering is traditionally used for manufacturing ceramic objects and after that it is used for filtration application. Due to sintering process, particles join with each other and form a porous structure which allow any fluid , air or gas to pass through without disturbing its structure. This structure is robust in nature to handle particle above stipulated micron rating. Such elements are back washed some time for cleaning purpose to remove deposited particle load. These sintered solid filters are able to withstand very high differential pressure across the filters.
- QUALITY APPROACH:We at SSBS are committed to meet our customers’ requirements for their entire satisfaction. To achieve our goal, we continuously improve our work performance and our Quality Management System. Since SSBS is an industry wherein moulder prepares raw material as well as finished products, quality testing is very stringent since it affects the final products. “SSBS” has carry out testing of raw materials, stage wise inspection and on finished products to ensure the quality product
- Sanitary fittings and construction
- Higher pressure rating
- Housings of alloy steel
- Steam jackets
- Special outlet locations
- Optional cartridge sealing methods for 226, NPT, etc
- High temperature gasket designs
Technical Specification:

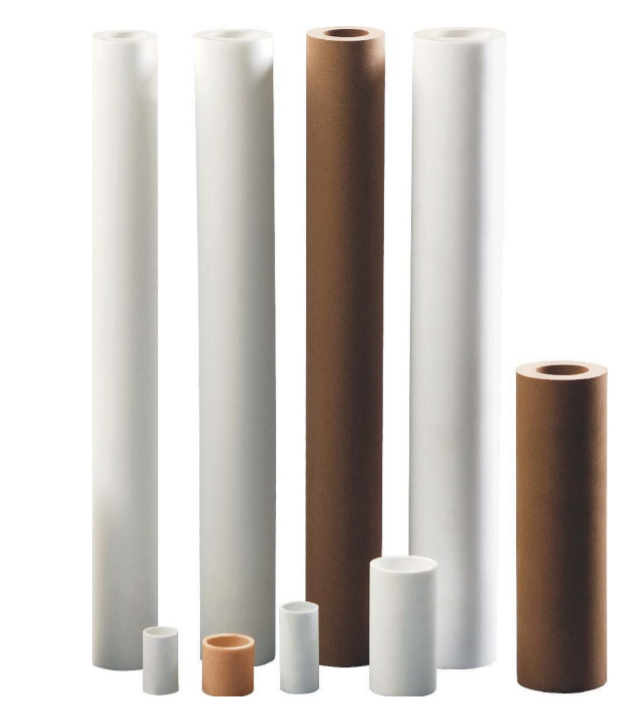

SSBS Sprint Sintered (Non – Metallic) Filter Cartridge
Sizes
- 10”, 20”, 30”, 40” Long
Micron Rating
- 1,5,10,25, 50,100 & More
Outer Diameter
- 64 mm ,70 mm
Inner Diameter
- 28 mm,40 mm
Salient Features
- Made of single base material, hence free from any binder
- Specific Pore size distribution due to sintering process
- Withstand very high differential pressure High void volume compared to conventional sintered material
- Easy to clean & back wash
- Wide chemical compatibility
SSBS Sprint Brand Sintered (Non – Metallic) Filter Cartridge widely used in
- Compressed air filtration
- Gas filtration
- Fine Chemicals Solvents, Process Streams, Water Purification
- Magnetic coating Dispersions, Coating Lines, Solvents
- Petrochemicals Water flood, Comletion Fluids, Amines
- Cosmetics Alcohols, Essential oils , Water lines
- Water Treatment membrane Protection, Resin Trap
- Metal Finishing Plating solution, paint and resin products, Wash
Material Composition:
Sprint Brand Sintered (Non – Metallic) Filter Cartridge consist
- Sintered Ceramic
- Sintered stainless steel
- Sintered stainless steel mesh
Sizes Available:
- SSBS Sprint Sintered (Non – Metallic) Filter Cartridge consist available in different sizes such as 10”, 20”, 30”, 40” Long (Customized sizes available)
